This Zing Ear ZE-235L rocker switch features an updated design with a built-in neon light, replacing the older incandescent version. The neon indicator consumes less energy, operates at a lower temperature, and helps extend the overall lifespan of the switch.

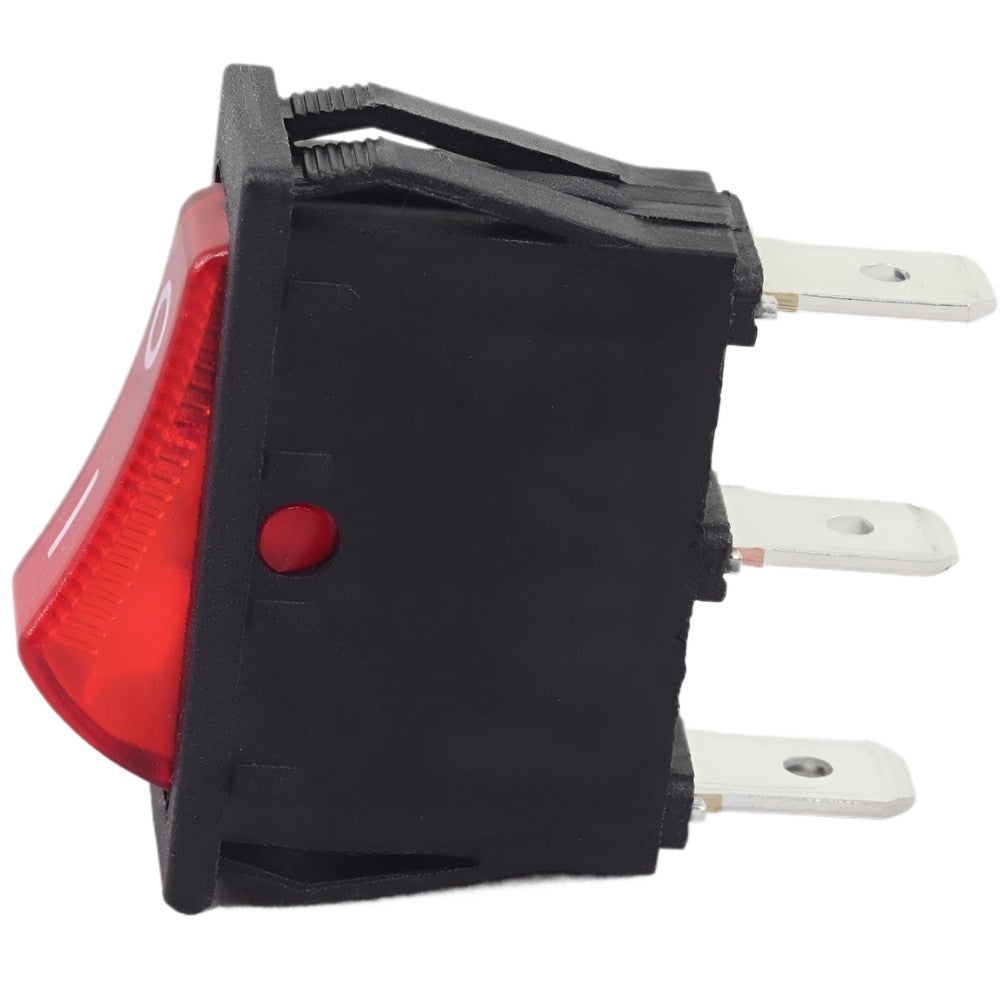

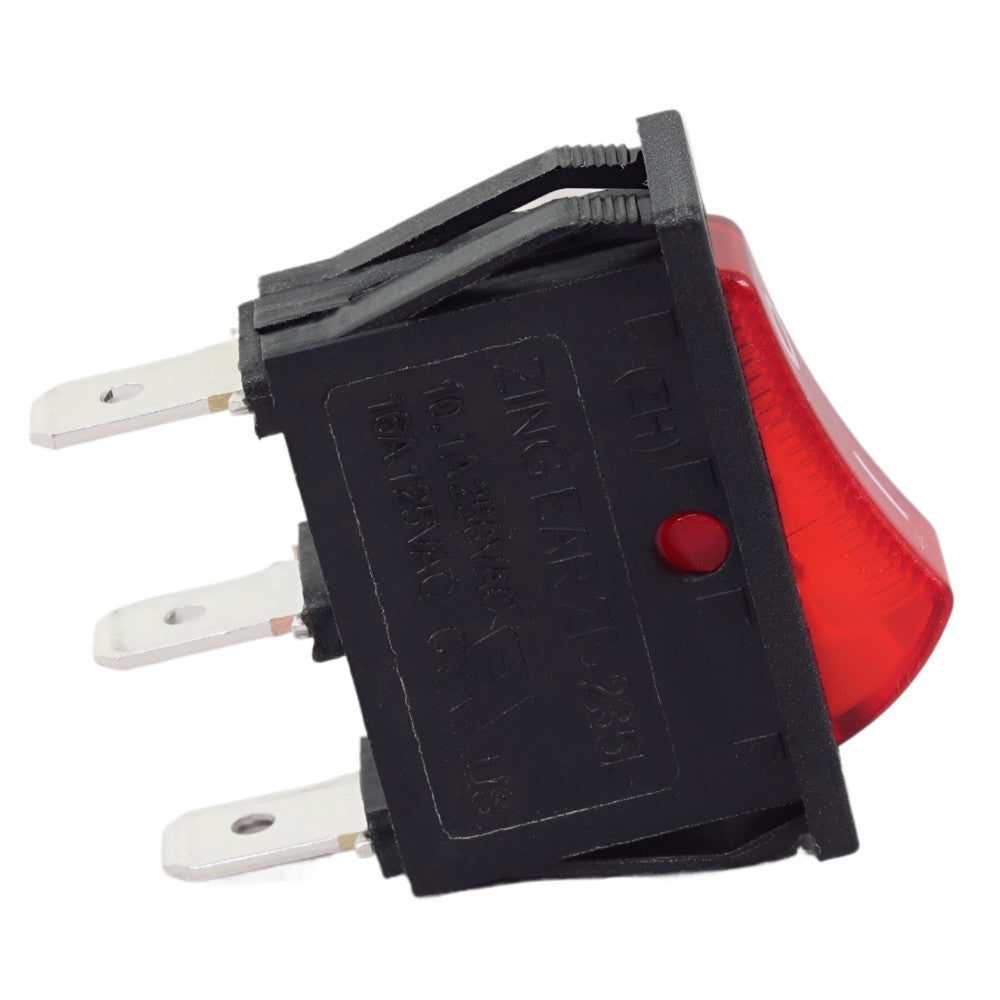

The ZE-235L is UL approved and meets North American electrical standards. It includes 3 prongs (terminals) for secure wiring, and its durable plastic body ensures reliable performance.
Zing Ear ZE-235L Specification
- Function: ON/OFF
- Condition: New
- Terminal Type: Spade
- Part Numbers (interchangeable): ZE-235L, ZE 235L, ZE235L
- Electrical Rating: 16A 125VAC / 10.1A 250VAC

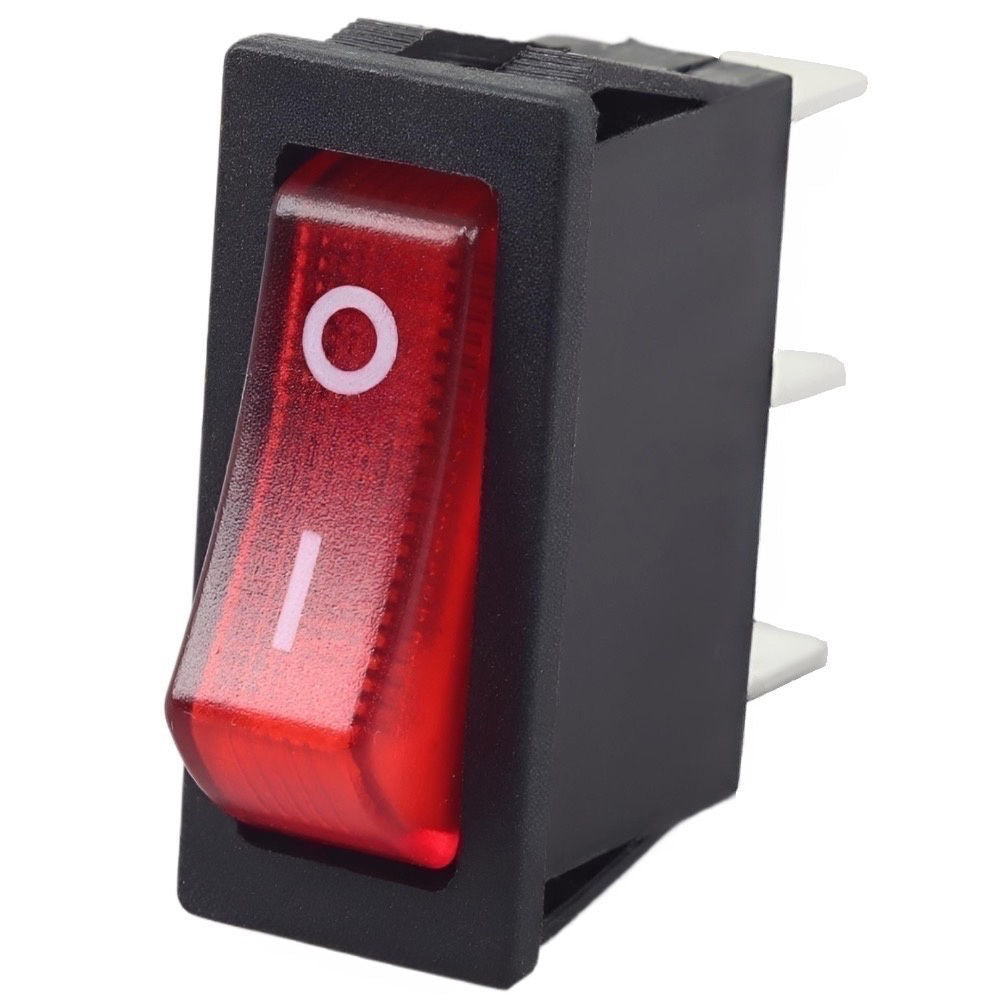

- Illumination: Red neon indicator

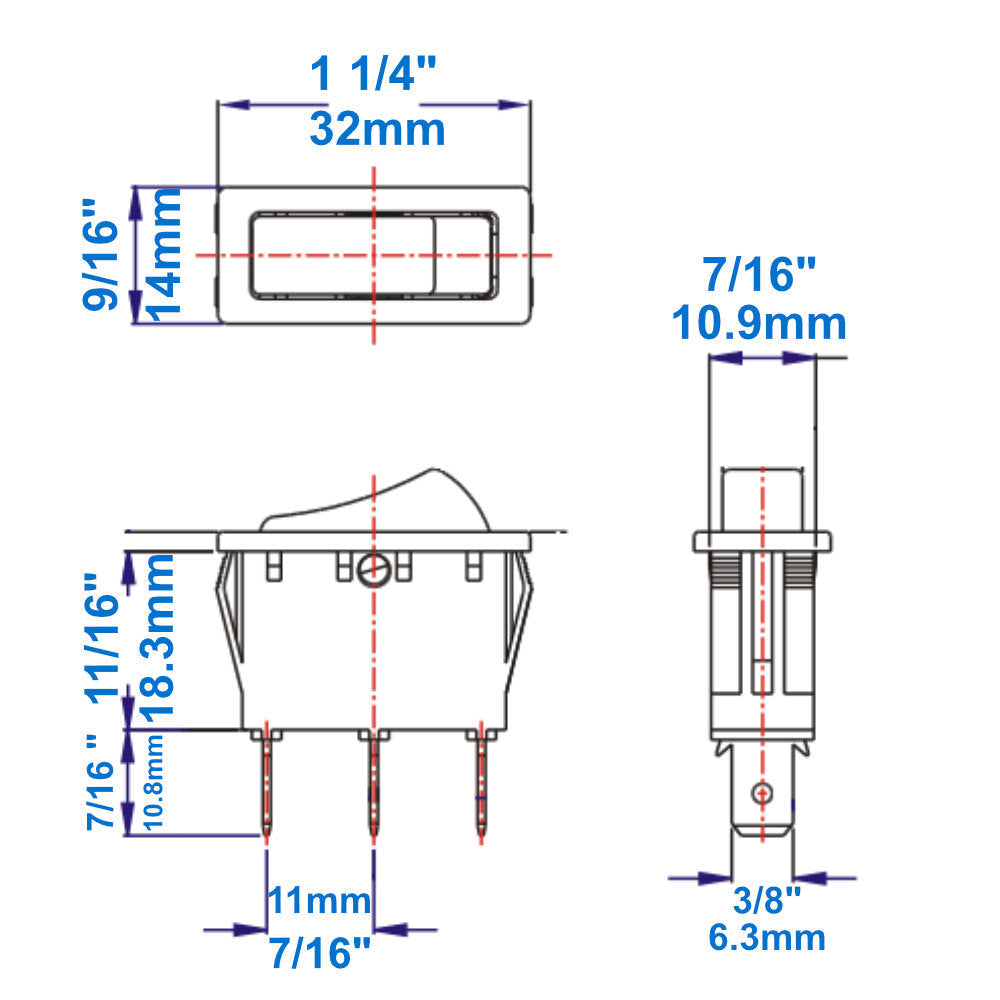

- Design: Snap-in (panel cutout 3cm x 1.1cm)
- Construction: Single Pole Single Throw (SPST)
ZE-235L is commonly used in:
- Ice makers, including models from EdgeStar
- Electric fireplaces and heaters from brands such as Hampton Bay, Suntec, Dimplex, Desa, FMI, Vanguard, Lennox, Duraflame, and Twin Star (fits multiple part numbers including 23EF003GAA, 23EF010GAA, 23E05 series, 28E05, 33E05, and more)
- Bench grinders, including Craftsman units
- Range hoods with fan and light controls
- Small household appliances such as water dispensers, treadmills, and coffee machines
- Power strips and surge protectors like those from Tripp Lite
- Air compressors, including pancake-style compressors
- Popcorn machines, including Great Northern models
- Vacuum cleaners such as Shop-Vac units
- Pool and spa equipment including Intex sand filter pumps
- Other general-use machines requiring a compatible rocker switch
Make sure that the existing switch can work within the same electrical rating range as this switch.
