Description
Zing Ear ZE-268S6 controls your ceiling fan rotation speed by simply pulling the chain.
This 4 wire fan switch is compatible with Hunter, Harbor Breeze, Hampton Bay, Casablanca, Minka Aire, Emerson, Monte Carlo, Craftmade, Dynasty, etc.
Zing Ear ZE-268S6 Specifications
- Condition: New
- Electrical rating: 6A 125VAC - 3A 250VAC
- Function: Off, High, Medium, Low
- Internal positions: Off, L-1, L-2-3, L-3
- Type: Pull chain switch
- UR (UL) recognized in US and Canada
- CSA approved
- Material: plastic housing
ZE 268S6 is Compatible with
- Zing Ear ZE-208S6-A09 (riveted-together)
- Zing Ear ZE-208S6
- Sun-Lite SL-A-300
- Shine Top LS-102
- Wu Pin LJY-288A E198635 4-hole
- Wu PinLJY-280A E198635 4-hole
- Well Tec E116997 WTC-1
- KTE 3089T Circuit M E87438
- YouYan E98999
- KTE 2035080
Compatibility Notes

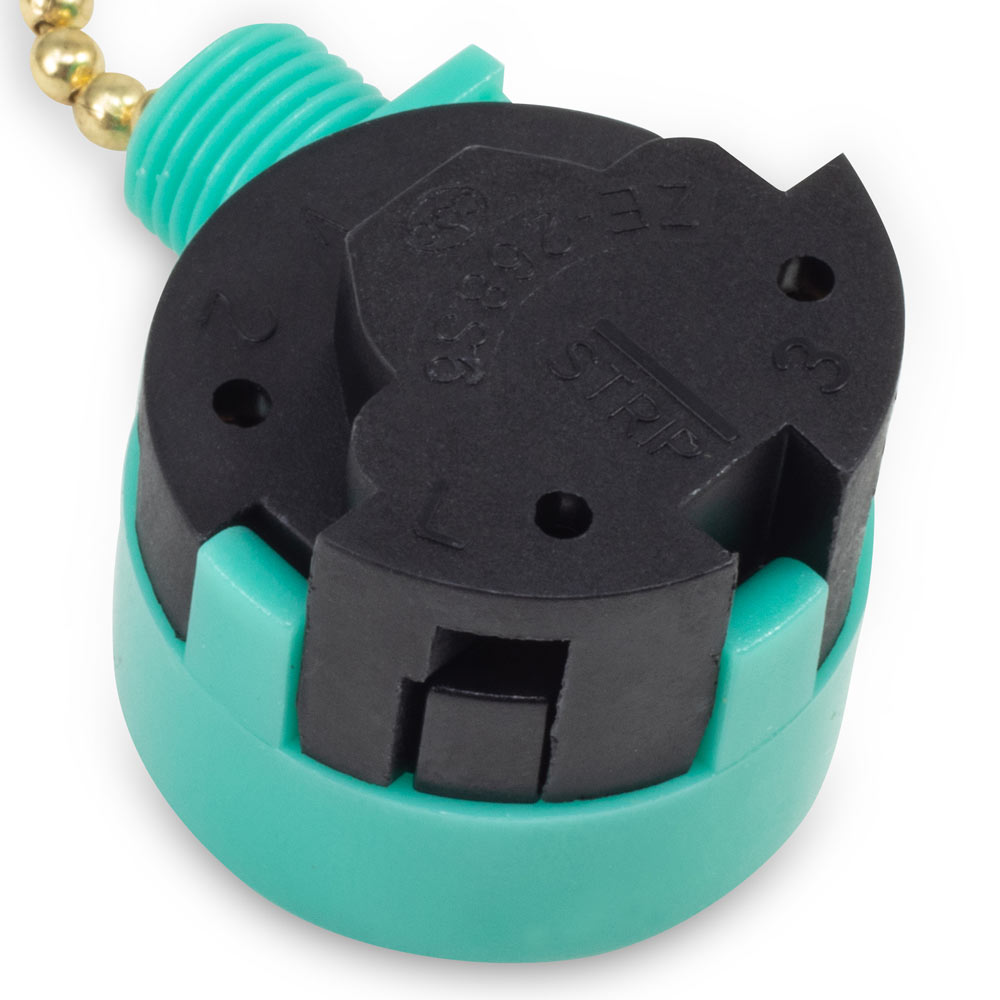

- Black wire (AC line/power) must be attached to terminal "L" on the old/existing switch, otherwise, this 3 way fan switch is not a compatible replacement.
- The terminal number sequence on the old/existing switch must be 1-2-L-3 in a counterclockwise direction; otherwise, this is not a compatible replacement.
- For more details on compatibility, please visit this page.
For wiring instructions, please visit this page.
