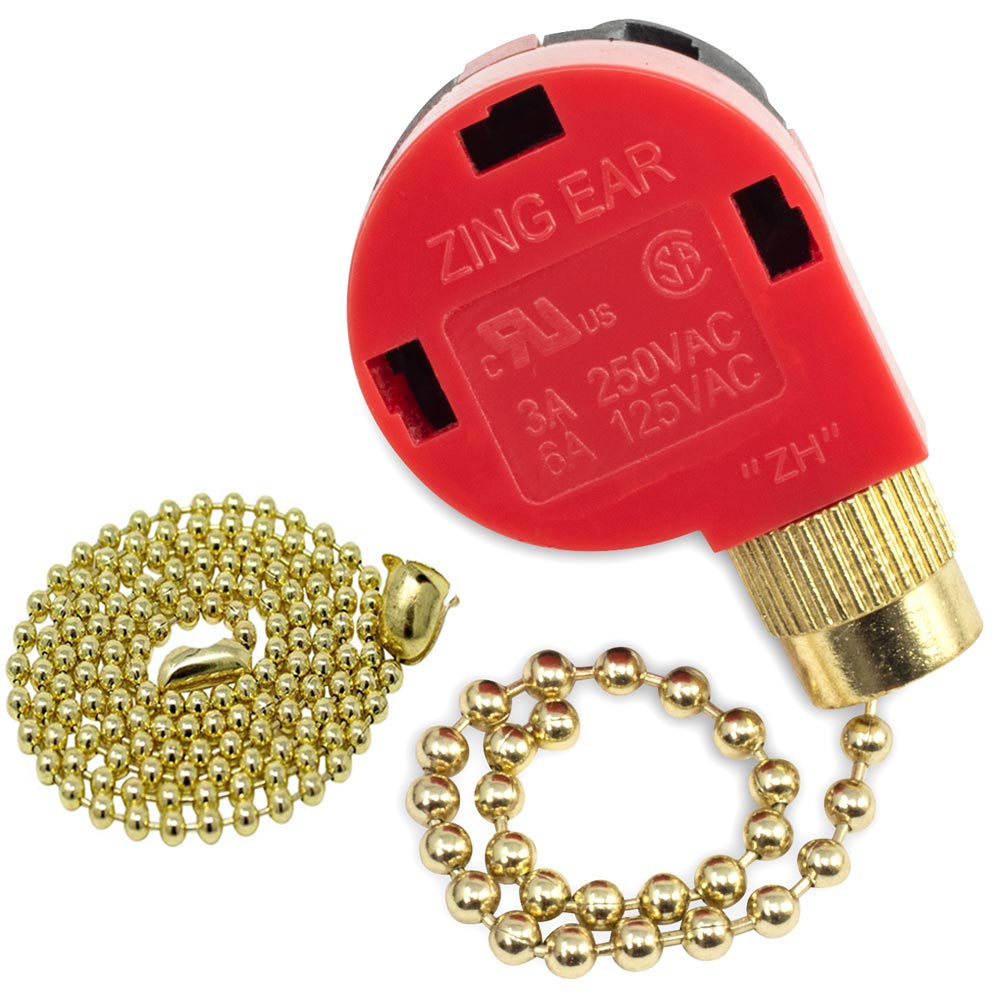

Zing Ear ZE-208S and ZE-268S1 Switch Compatibility

ZE-208S and ZE-268S1 Pull Chain Fan Switches Are Compatible With The Following Switches:

Note: On the old/existing switch, the black wire (AC line/power) must be attached to terminal "L", and the terminal number sequence must be 1-2-3-L  in a counterclockwise direction; otherwise, switch models ZE-208S and ZE-268S1 are not a compatible replacement.

Zing Ear ZE-208S switch compatibility

  • Zing Ear ZE-268s1
  • Shine Top LS-102-01
  • GC35-0867
  • Sun-Lite SL-A-200A
  • Wu Pin LJY-209A
  • Well Tec E116997 WTC-1
  • LJY-280A 4-hole 3-speed switch
  • KTE 3089T (Circuit R)
  • KTE 308-A E87438
  • Fransco S01 4-hole 3-speed switch
  • You Yan E98999
  • Jin You 4-hole 3-speed switch
  • Santa 4-hole 3-speed switch

    These 3-Speed 4-Wire Pull Chain Switches Are Also Compatible With Many Fans Including:

    • Harbor Breeze fans
    • Hampton Bay fans including model numbers: CMF-52, E77491 52 F, BC5-52 CH, and MV52V-WH
    • Emerson fans including model numbers: AC-4152-5
    • Sears fans including model number: 689 110700
    • Casablanca fans
    • Hunter fans including model number: 25416
    • iLiving fans including model number: ILG8E20-15
    • Patton pedestal fans including model number 1010MP
    • Airmaster fans including:
      • 24HF36 20750K 1HP 24in heavy-duty, non-oscillating, industrial spot cooler
      • 24HI36 20790K 1HP 24in heavy-duty, non-oscillating, industrial spot cooler
      • 24HS36 20780K 1HP 24in heavy-duty, non-oscillating, industrial spot cooler
      • 24HW36 20770K 1HP 24in heavy-duty, non-oscillating, industrial spot cooler
      • 24LF36 20600K 1/4HP 24in heavy-duty, air circulator, non-oscillating
      • 24LF36X 20450K 1/4HP 24in heavy-duty, non-oscillating, spark resistantg
      • 24LI36 20640K 1/4HP 24in heavy-duty, air circulator, non-oscillating
        24LI36X 20490K 1/4HP 24in heavy-duty, non-oscillating, spark resistantg
      • 24LS36 20630K 1/4HP 24in heavy-duty, air circulator, non-oscillating
      • 24LS36X 20480K 1/4HP 24in heavy-duty, non-oscillating, spark resistantg
      • 24LW368 20620K 1/4HP 24in heavy-duty, air circulator, non-oscillating
      • 24LW36X8 20470K 1/4HP 24in heavy-duty, non-oscillating, spark resistantg
      • 30HF36 20840 1HP 30in heavy-duty, non-oscillating, industrial spot cooler
      • 30HI36 20880 1HP 30in heavy-duty, non-oscillating, industrial spot cooler
      • 30HS36 208670 1HP 30in heavy-duty, non-oscillating, industrial spot cooler
      • 30HW36 20860 1HP 30in heavy-duty, non-oscillating, industrial spot cooler
      • 30LF36 20650K 1/4HP 30in heavy-duty, air circulator, non-oscillating
      • 30LF36X 20500K 1/4HP 30in heavy-duty, non-oscillating, spark resistantg
      • 30LI36 20690K 1/4HP 30in heavy-duty, air circulator, non-oscillating
      • 30LI36X 20540K 1/4HP 30in heavy-duty, non-oscillating, spark resistantg
      • 30LS36 20680K 1/4HP 30in heavy-duty, air circulator, non-oscillating
      • 30LS36X 20530 1/4HP 30in heavy-duty, non-oscillating, spark resistantg
      • 30LW368 20670K 1/4HP 30in heavy-duty, air circulator, non-oscillating
      • 30LW36X8 20520K 1/4HP 30in heavy-duty, non-oscillating, spark resistantg
      • CA24WC 71572 24in wall-mounted/ceiling-mounted circulator
      • CA30APE 71586 1/4HP 30in commercial, air circulator, non-oscillating
      • CA30OW 71582 30in wall-mounted, air ciculator, oscillating
      • CA30WC 71573 30in wall-mounted/ceiling-mounted circulator
      • UP18BN-S 20894 1/5HP 18in heavy-duty, air circulator, oscillating
      • UP18IN-S 20908 1/5HP 18in heavy-duty, air circulator, oscillating
      • UP18LF16-S 20892 1/5HP 18in heavy-duty, air circulator, non-oscillating
      • UP18LI16-S 20906 1/5HP 18in heavy-duty, air circulator, non-oscillating
      • UP18LS16-S 20911 1/5HP 18in heavy-duty, air circulator, non-oscillating
      • UP18LW16-S8 20899 1/5HP 18in heavy-duty, air circulator, non-oscillating
      • UP18WN-S8 20903 1/5HP 18in heavy-duty, air circulator, oscillating
      • UP20BN-S 20898 1/5HP 20in heavy-duty, air circulator, oscillating
      • UP20IN-S 20909 1/5HP 20in heavy-duty, I-Beam mount, oscillating
      • UP20LF16-S 20893 1/5HP 20in heavy-duty, air circulator, non-oscillating
      • UP20LI16-S 20907 1/5HP 20in heavy-duty, air circulator, non-oscillating
      • UP20LS16-S 20912 1/5HP 20in heavy-duty, air circulator, non-oscillating
      • UP20LW16-S8 20902 1/5HP 20in heavy-duty, air circulator, non-oscillating
      • UP20WN-S8 20904 1/5HP 20in heavy-duty, air circulator, oscillating
      • UP24BN-S 20885 1/3HP 24in heavy-duty, air circulator, oscillating
      • UP24IN-S 37147 1/3HP 24in heavy-duty, air circulator, oscillating
      • UP24LF16-S 20895 1/3HP 24in heavy-duty, air circulator, non-oscillating
      • UP24LF16X 20301 1/4HP 24in heavy-duty, non-oscillating
      • UP24LI16-S 37139 1/3HP 24in heavy-duty, air circulator, non-oscillating
      • UP24LI16X 20347 1/4HP 24in heavy-duty, non-oscillating
      • UP24LS16-S 37137 1/3HP 24in heavy-duty, air circulator, non-oscillating
      • UP24LS16X 29331 1/4HP 24in heavy-duty, non-oscillating
      • UP24LW16-S8 37144 1/3HP 24in heavy-duty, air circulator, non-oscillating
      • UP24LW16X8 20321 1/4HP 24in heavy-duty, non-oscillating
      • UP24WN-S8 37129 1/3HP 24in heavy-duty, air circulator, oscillating
      • UP30BN-S 20890 1/3HP 30in heavy-duty, air circulator, oscillating
      • UP30IN-S 37148 1/3HP 30in heavy-duty, air circulator, oscillating
      • UP30LF16-S 20900 1/3HP 30in heavy-duty, air circulator, non-oscillating
      • UP30LF16X 20351 1/4HP 30in heavy-duty, non-oscillating
      • UP30LI16-S 37140 1/3HP 30in heavy-duty, air circulator, non-oscillating
      • UP30LI16X 20391 1/4HP 30in heavy-duty, non-oscillating
      • UP30LS16-S 37138 1/3HP 30in heavy-duty, air circulator, non-oscillating
      • UP30LS16X 20381 1/4HP 30in heavy-duty, non-oscillating, spark resistant
      • UP30LW16-S8 37145 1/3HP 30in heavy-duty, air circulator, non-oscillating
      • UP30LW16X8 20371 1/4HP 30in heavy-duty, non-oscillating
      • UP30WN-S8 37135 1/3HP 30in heavy-duty, wall mount, oscillating
