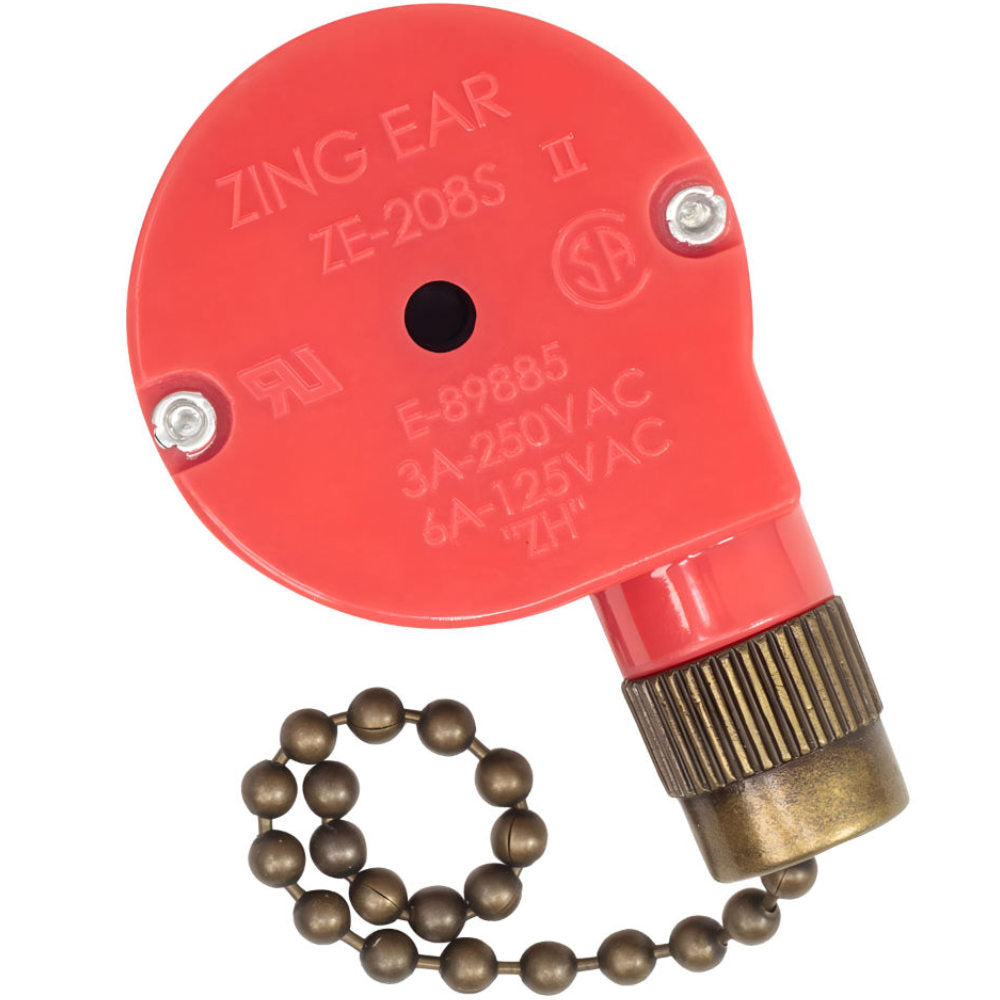

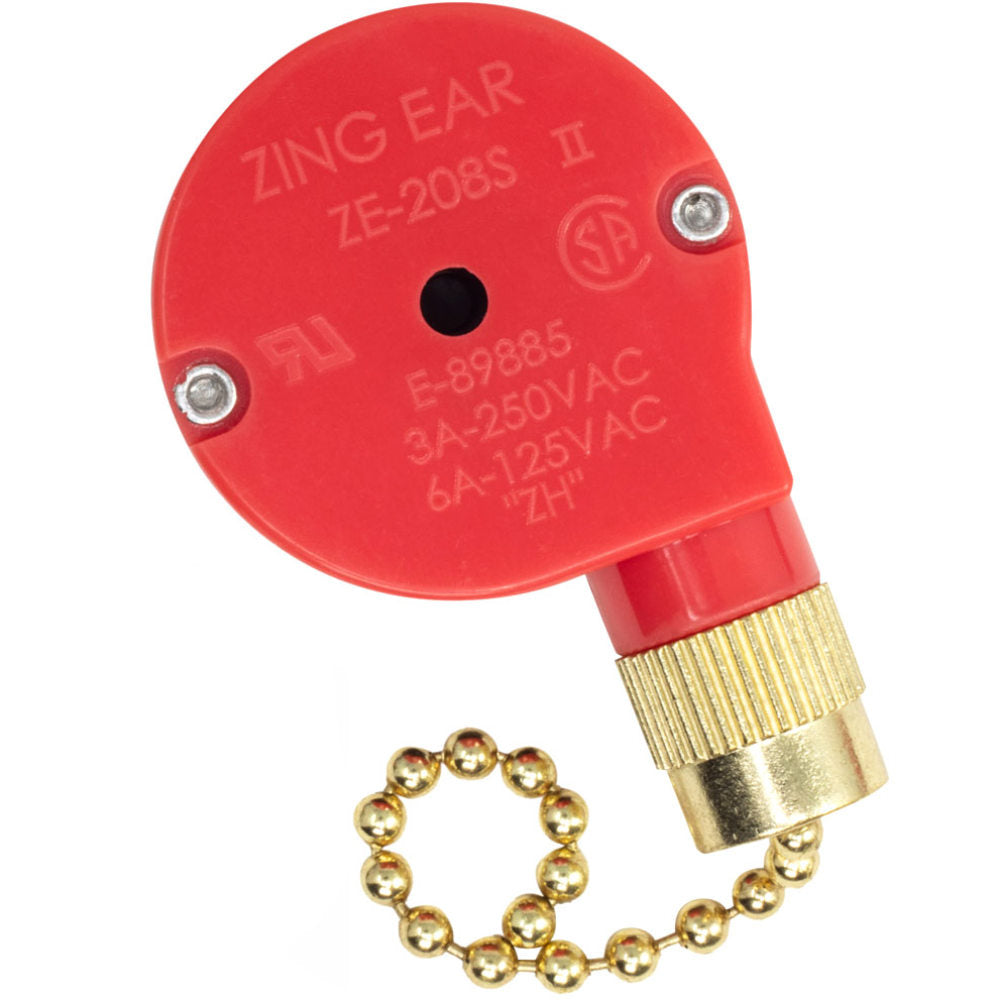

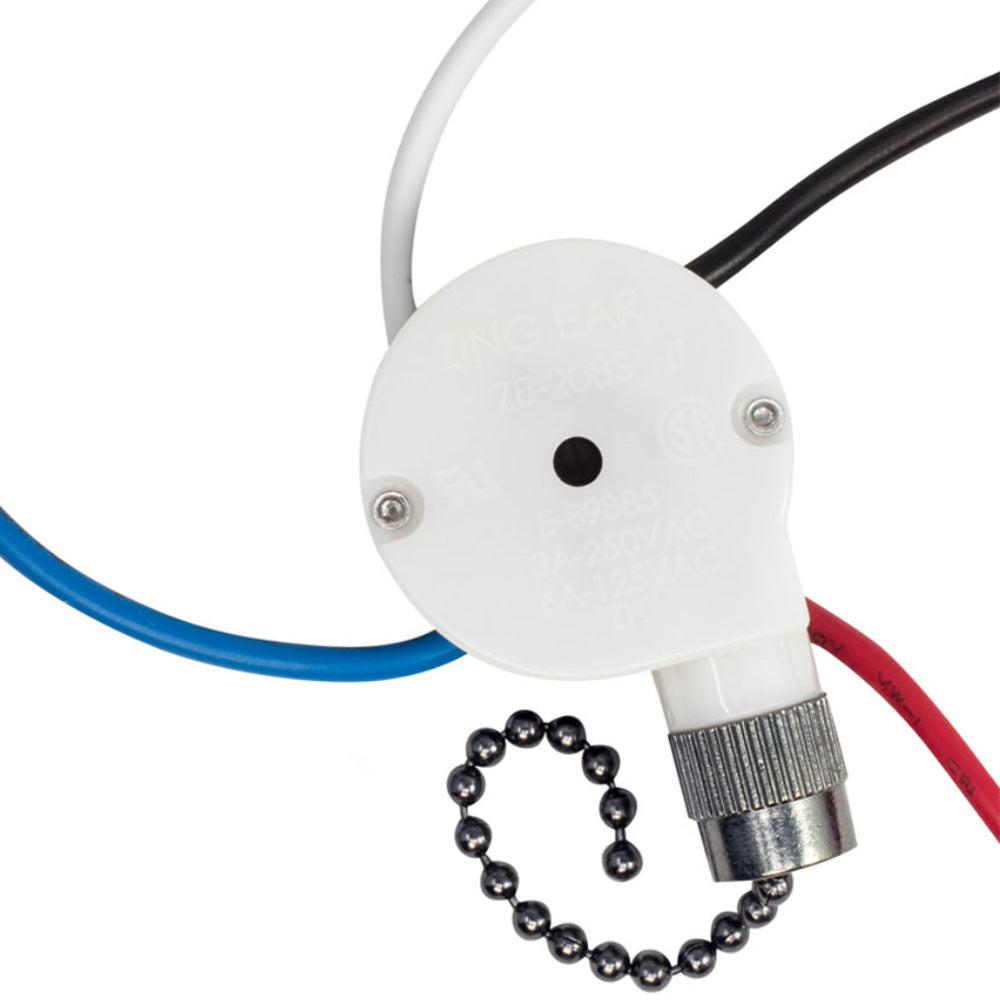

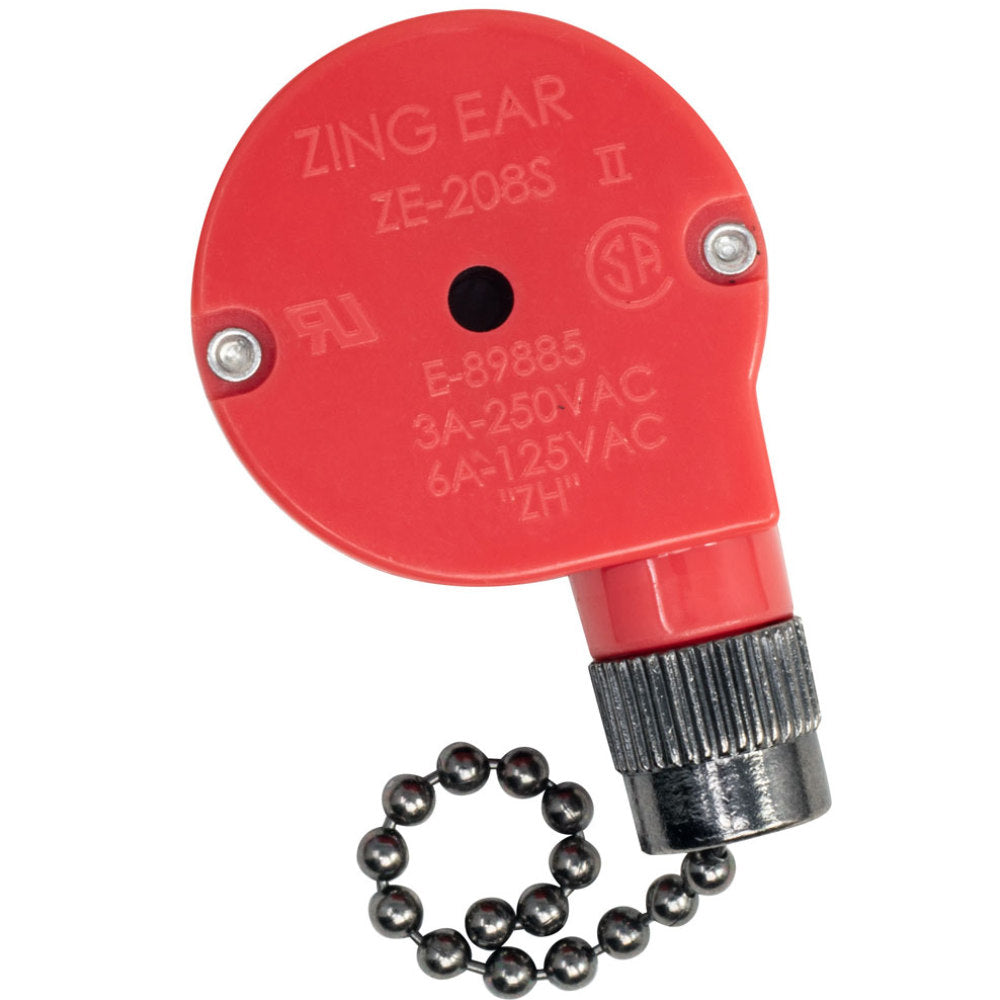

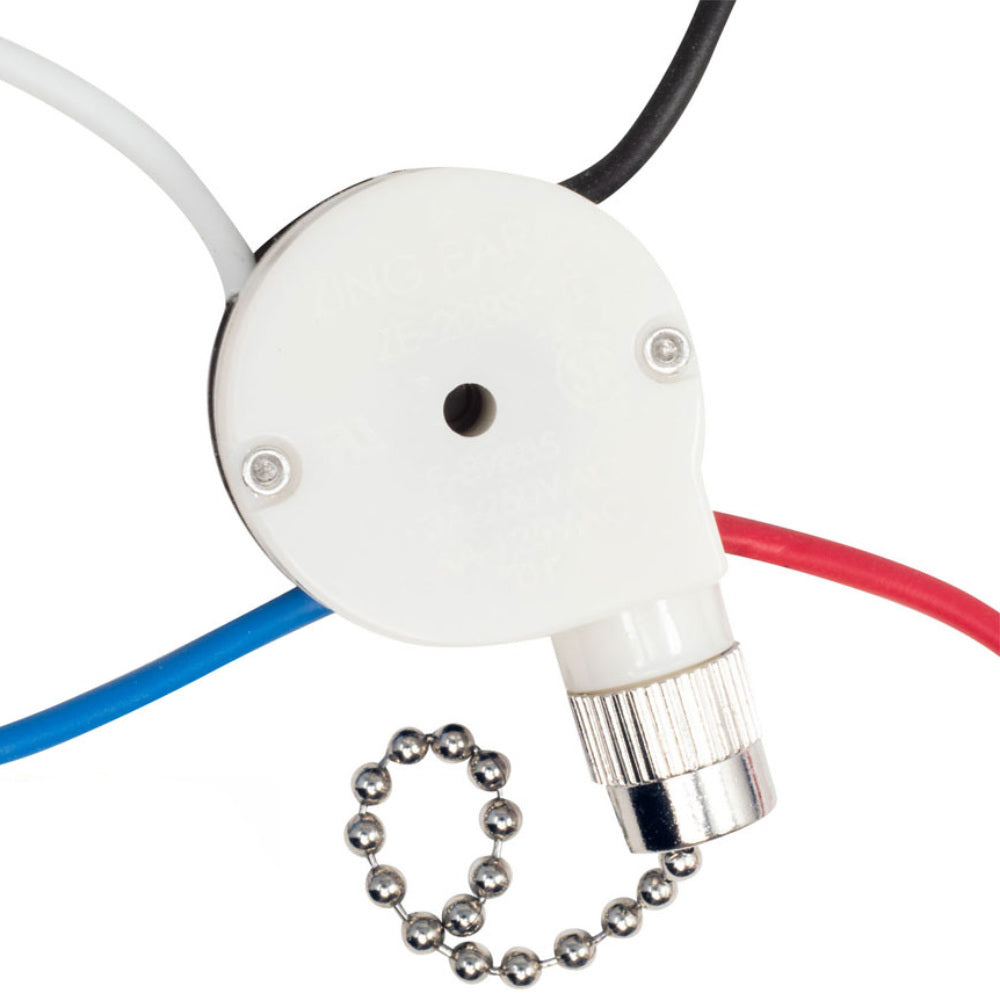

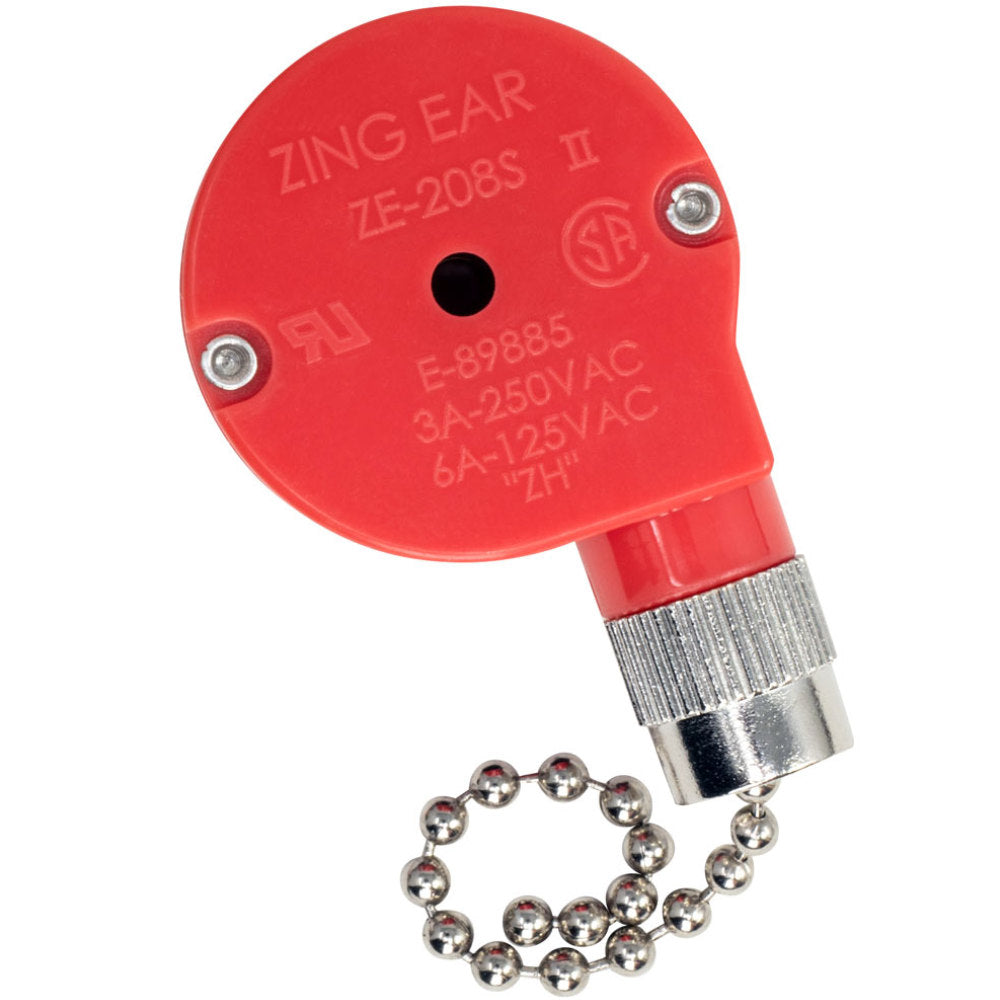

Zing Ear ZE-208S E898885 4 Wire 3 Speed Ceiling Fan Switch Replacement


Color: Brass without wires
Price:
Sale price$8.75
Stock:
Only 4 units left

Description

Zing Ear ZE-208s is a cost-effective solution to fix your broken fan instead of replacing it.

This 4 wire ceiling fan switch fits many fans including Hunter, Hampton Bay, Emerson, Harbor Breeze, Sears, Casablanca, etc.

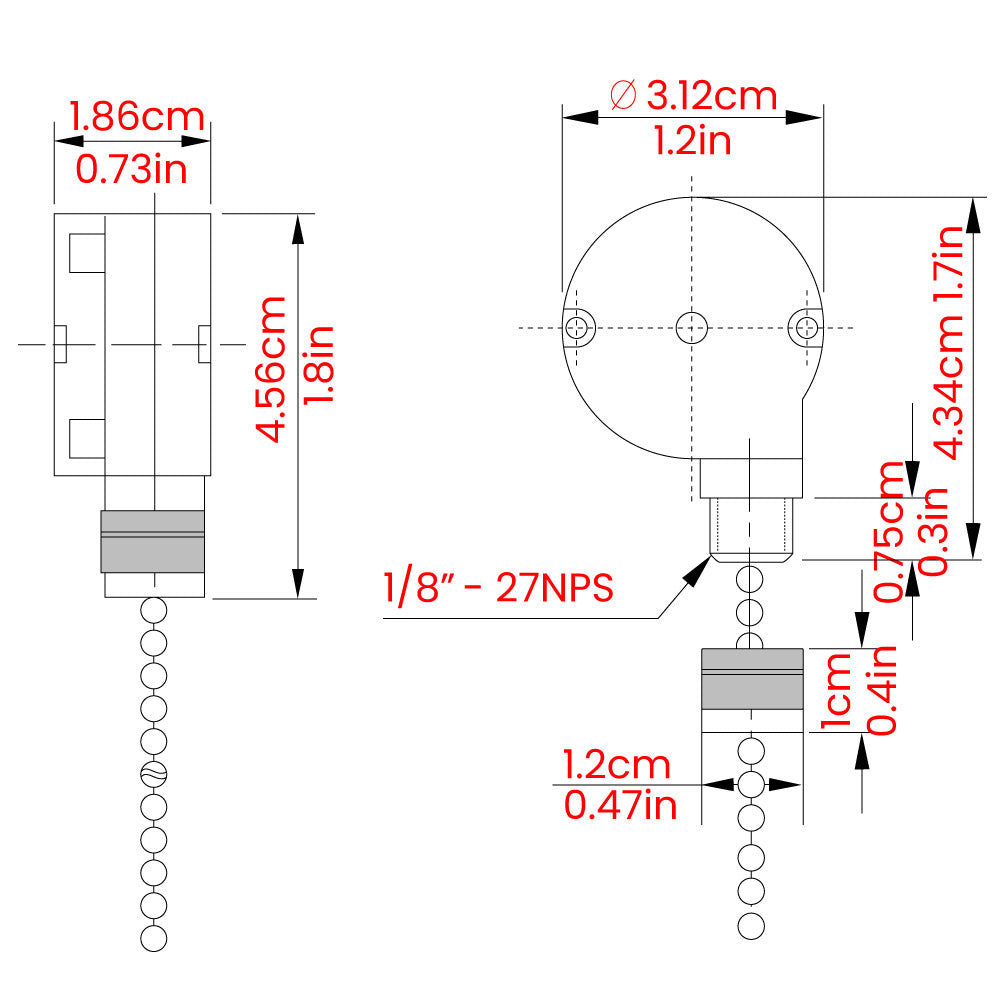

Zing Ear ZE-208S Specifications

  • Condition: New
  • Electrical rating: 6A 125VAC - 3A 250VAC
  • Function: Off, High, Medium, Low
  • Internal positions: Off, L-1, L-2, L-3
  • Type: Pull chain switch
  • UR (UL) recognized E89885
  • CSA approved
  • Material: plastic housing

ZE 208S is Compatible with

  • Zing Ear ZE-268s1
  • Shine Top LS-102-01
  • GC35-0867
  • Sun-Lite SL-A-200A
  • Wu Pin LJY-209A
  • LJY-280A 4-hole 3-speed switch
  • KTE 3089T (Circuit R)
  • KTE 2035080 E87438
  • Fransco S01 4-hole
  • You Yan E98999
  • Jin You 4-hole 3-speed switch
  • Santa 4-hole 3-speed switch

Compatibility Notes

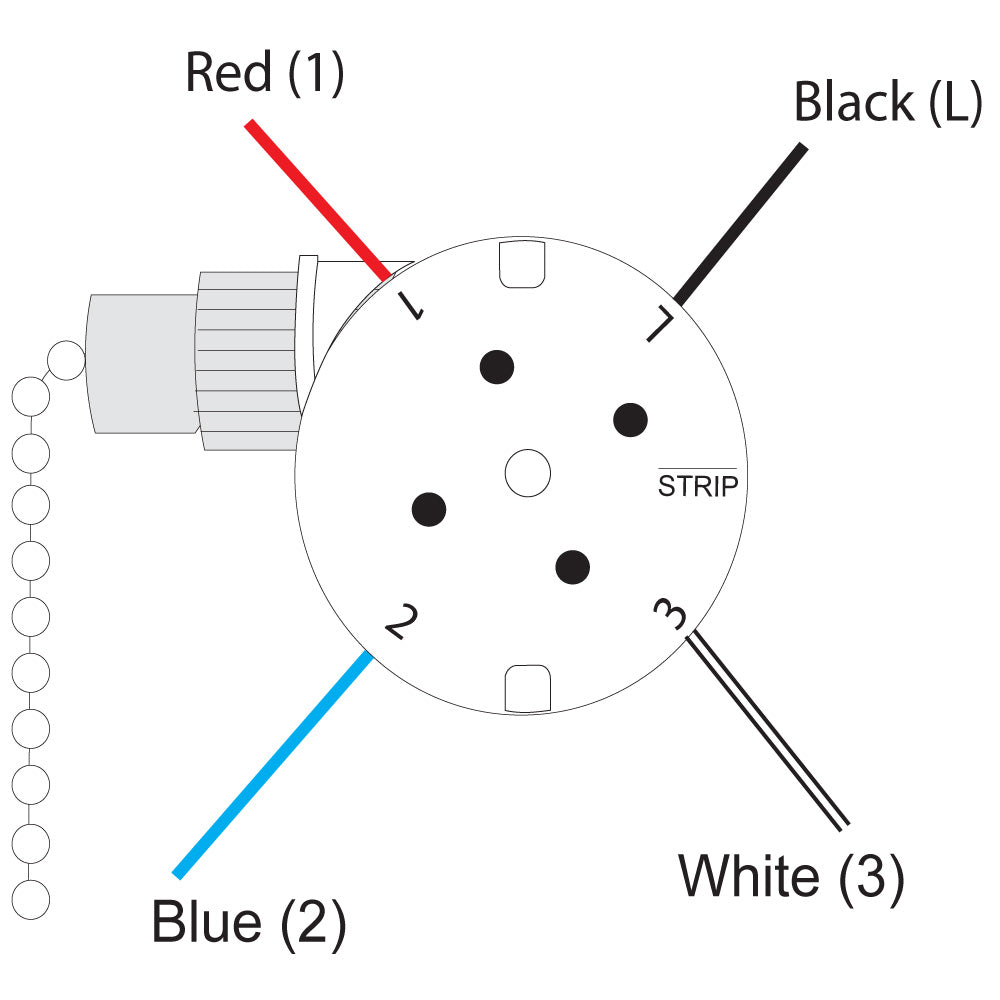

  • Black wire (AC line/power) must be attached to terminal "L" on the old/existing switch, otherwise, this 3 way ceiling fan switch is not a compatible replacement.
  • The terminal number sequence on the old/existing switch must be 1-2-3-L  in a counterclockwise direction; otherwise, this is not a compatible replacement.
  • For more details on compatibility, please visit this page.

For wiring instructions, please visit this link

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
33%
(1)
0%
(0)
C
Charlie Brown

delivery quick.

B
B.

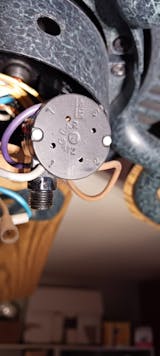

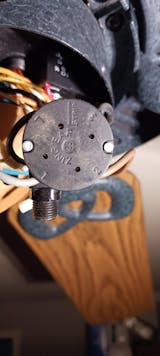

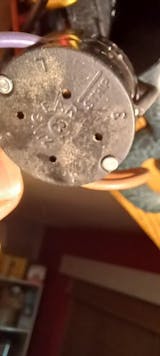

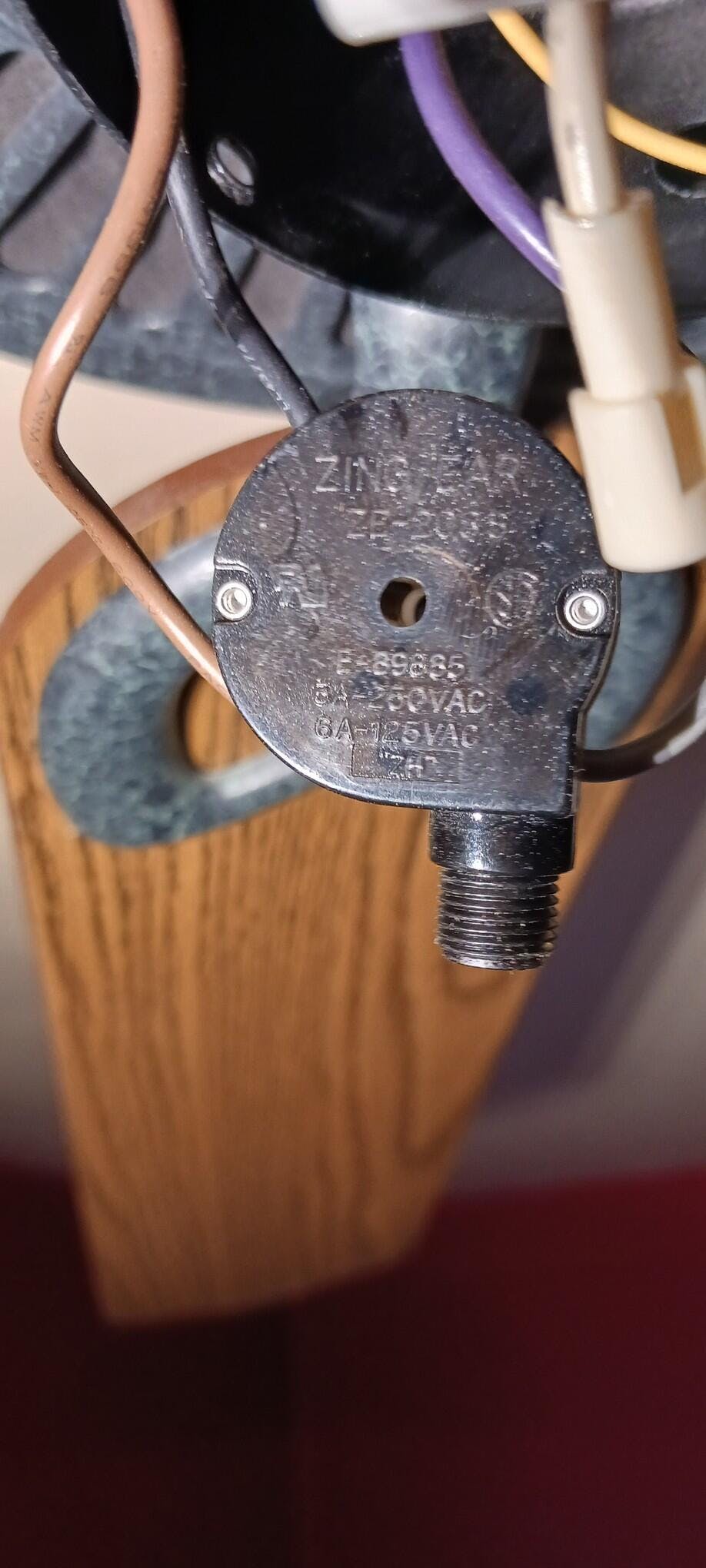

Bought this to replace ZE-208, but a no go

I ordered this ZE-208S II thinking it would replace my ZE-208S, which had the pull break inside the old unit. Well, I didn't know that the Internal Functions were not the same...but how was I to know that. If I had been able to check the pull sequence with an ohm meter, I might have known. What I did find out was that this one doesn't work as a replacement for the ZE-208S on a Hampton Bay fan. Had to use an Ohm meter to check the proper Operational Functions. The correct replacement is ZE-268S2 for my fan. Definitely read the description info...don't count on the model numbers being the same.

J
John Marinkovich
Fan switch

The switch works, but most helpful was the online wiring instructions
