KTE 3089 Circuit B 3-Speed 4-Wire Pull Chain Switch

• KTE 3089 Circuit B 3 speed fan switch. Fits many ceiling fans including Westinghouse, Hampton Bay, Hunter, Harbor Breeze, Casablanca, Emerson etc.
• Perfect for hassle-free DIY repairs, the KTE 3089 Circuit B switch simplifies fan installations with pre-soldered wires option, making it the ideal choice for quick and efficient fixes
• Replaces Zing Ear ZE-268S2

Important: The existing switch should have the following conditions; otherwise, this one would not work:

• Ensure the black wire is attached to terminal “3”

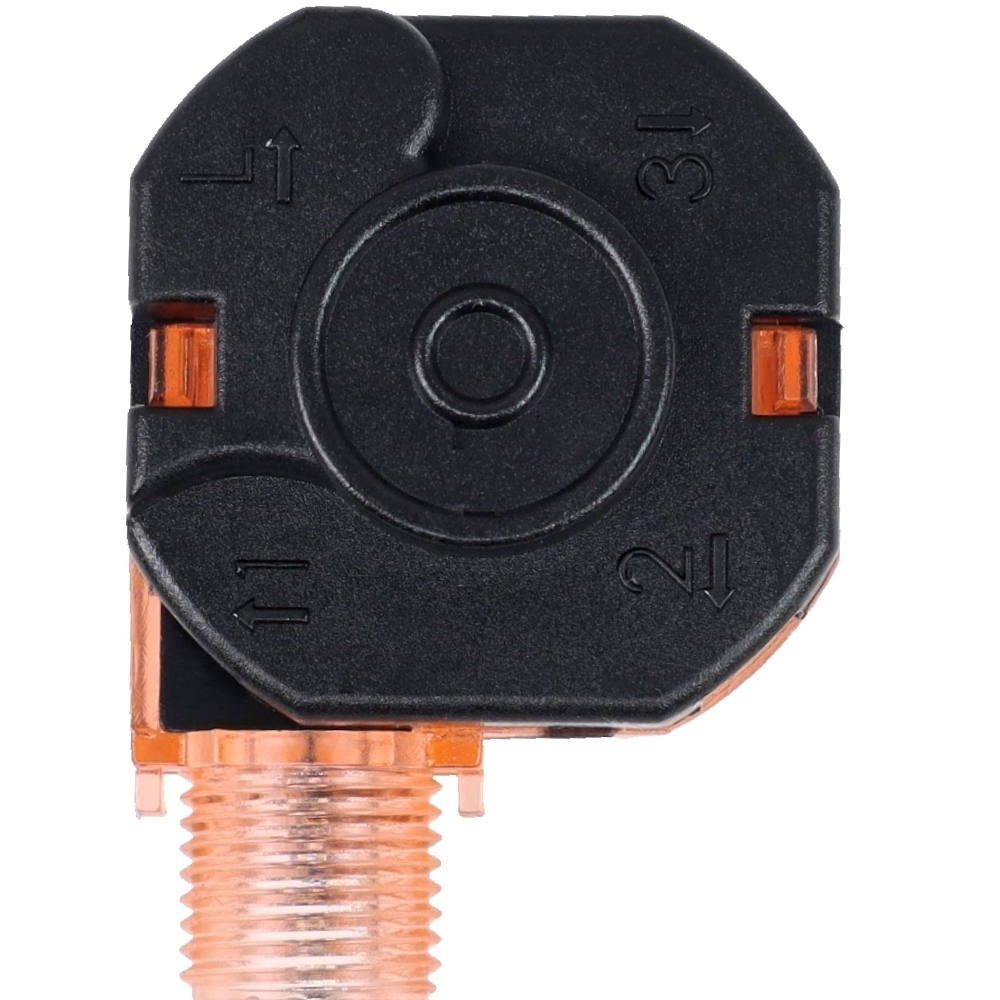

• Confirm the terminal sequence is L-1-2-3 in a counterclockwise direction

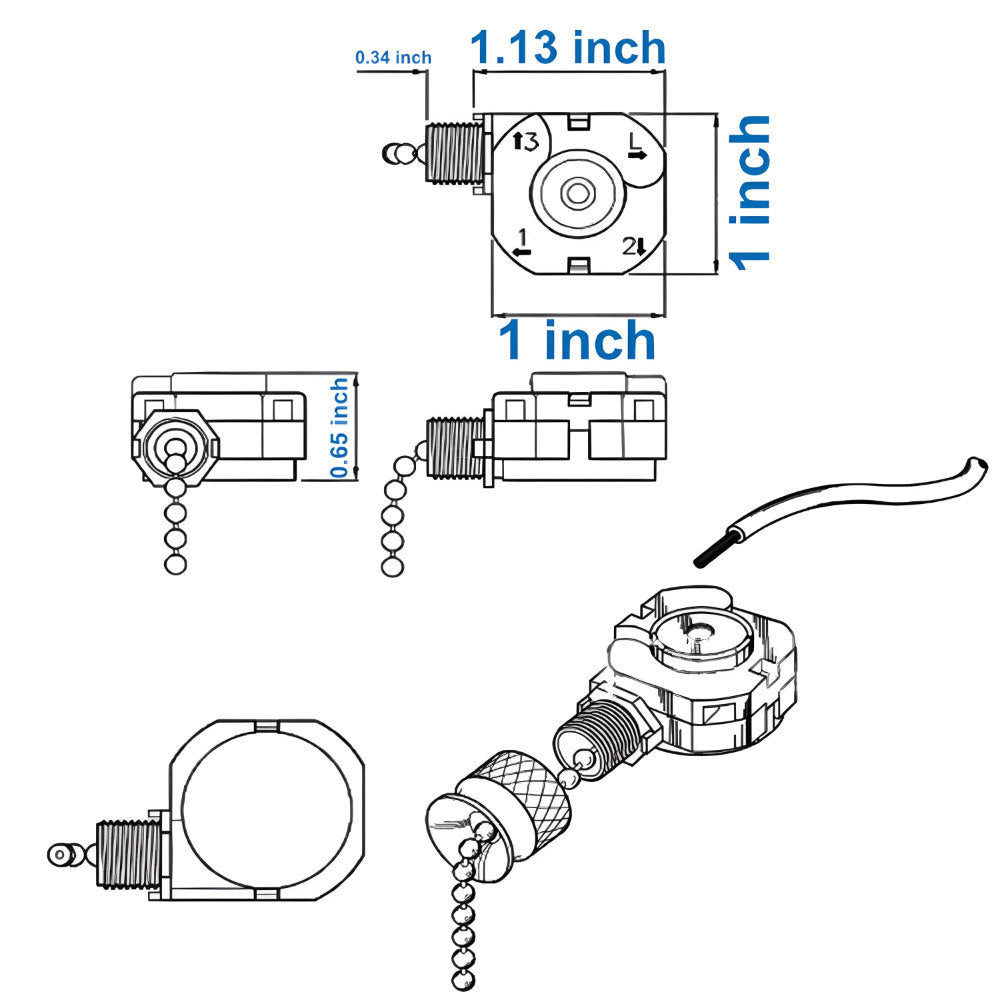

KTE 3089 Circuit B Switch Specifications

• Condition: New
• Model number: KTE 2035080 E87438 3089 Circuit B
• Part numbers (interchangeable): KTE 3089, KTE3089, KTE 3089B, KTE3089B
• Power Rating: 3A at 250VAC, 6A at 125VAC
• Function: Off, High, Medium, Low
• Internal positions:
• 1: OFF
• 2: 3-L-1-2
• 3: 3-L-2
• 4: 3-L-1

• UR (UL) approved
• Suitable for UL 1015 AWG#18 wire or UL 3321 AWG#18 wire(strip wire 6-7mm)
• Material: Plastic housing

Useful Links

• For step-by-step installation help, ideal for DIYers, check our Wiring instructions page
