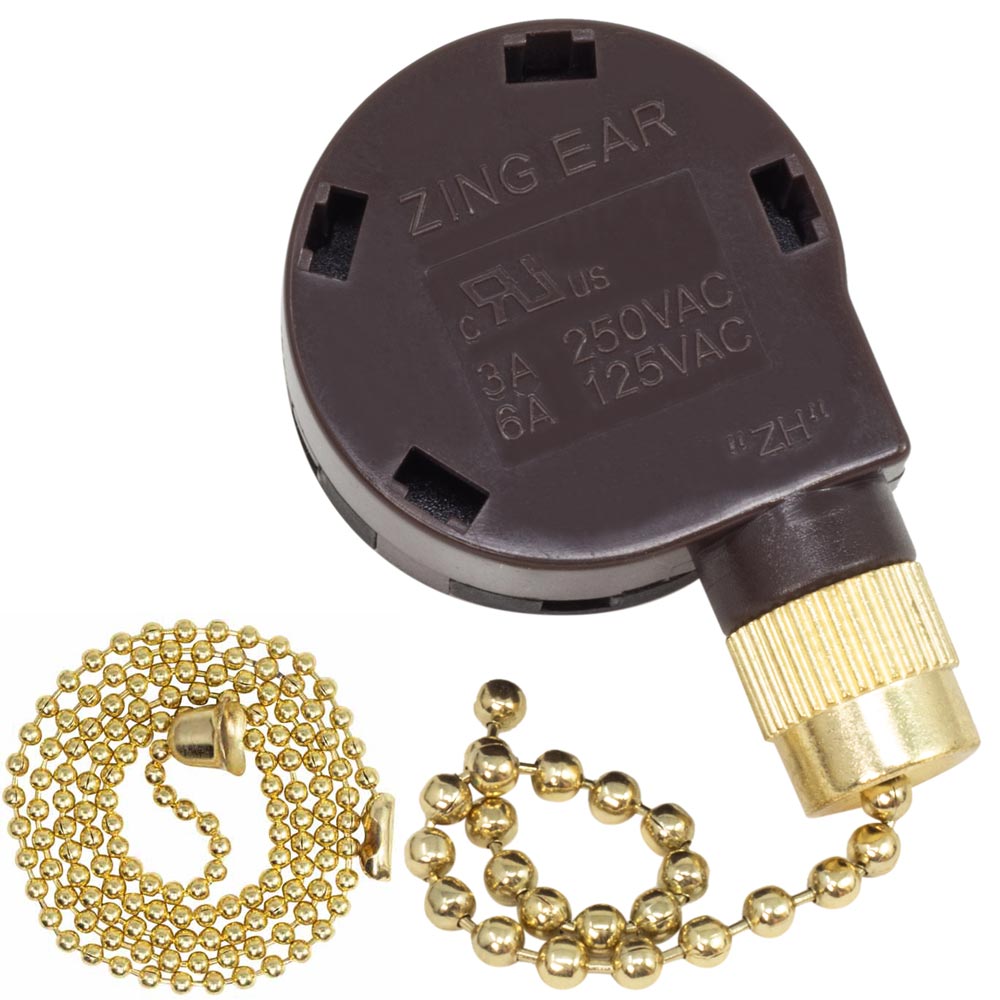

This wiring instuctions page is for Zing Ear ZE-208S5-1T and ZE-268S5 with four terminals as follows:

  • Terminal number sequence is 1-2-3-4-L in counterclockwise direction
  • Internal positions: Off, L-1, L-2-3-4, L-3-4, L-4

If the old/existing switch does not have the same information as above, then these wiring instructions will not work.

Steps

  1. Turn off electrical current at source. Failure to disconnect power may cause fire hazard,  electrical shock, serious injury, or death
  2. Do not cut the wires off the old switch. multi-strand wires are soldered together so they can be re-attached to the new switch
  3. Take a note of the color of each wire and the terminal number they are attached to
  4. Remove the wires from the old switch
  5. Make sure that the wire lead length is the same length as the line beside word STRIP. If the the lead length is shorter, stripe the wire to make it the same length
  6. Attach the wires to the new switch as noted in step 3. Wires should be inserted into the terminals on side of the switch not the holes on surface

Common Capacitors Used With ZE-268S5 / ZE-208S5-1T Switches:

  • CBB61
