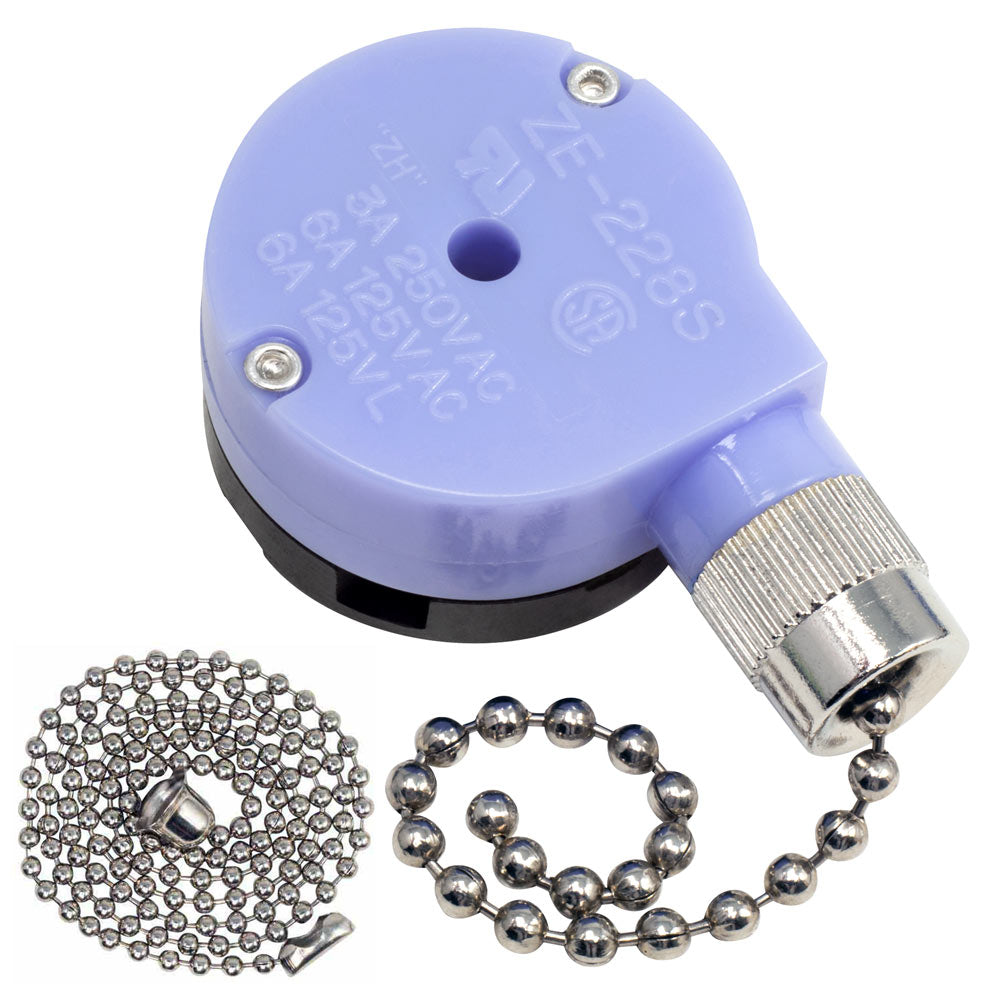

This wiring instructions page is for switch Zing Ear ZE-228S with three terminals as follows:

  • Terminal number sequence is 1-L-2 in counterclockwise direction
  • Internal positions: Off, L-1, L-2
Zing Ear ZE-228s 2 speed pull chain switch

If the old/existing switch does not have the same information as above, then these wiring instructions will not work.

Steps

  1. Turn off electrical current at source. Failure to disconnect power may cause electrical shock, fire hazard, serious injury, or death
  2. Do not cut the wires off the old switch. multi-strand wires are soldered together so they can be re-attached to the new switch
  3. Take a note of the color of each wire and the terminal number they are attached to
  4. Remove the wires from the old switch
  5. Make sure that the wire lead length is the same length as the line beside word STRIP. If the the lead length is shorter, stripe the wire to make it the same length
  6. Attach the wires to the new switch as noted in step 3. Wires should be inserted into the terminals on side of the switch not the holes on surface
